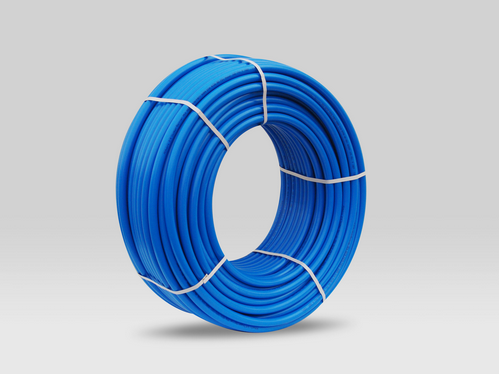

GFD pipe is a high quality Pex-b cross linked pipe ,Pex is an industry accepted name for cross linked polyethylene pipe . In general terms polyethylene in its normal state is not capable of handling high pressure or temperature loads . However once subjected to the cross-linking process . Its ability to handle these conditions is increased substantially .Manufactured with the cross-linked polyethylene, Pex-b pipes boost more elaborated polyethylene performances without losing the excellent properties of thermoplastics. Offering excellent corrosion resistance, incredible flexibility and unusual toughness, our PEX pipes allows fastest and easiest installation.
Technical Specification :
Technical Specification | Pex- B |
Thermal conductivity | 0.35-0.46 W/(m.k) |
Coefficient of thermal expansion | 0.2 mm/(m.k) |
Bending radius | >= 8D (D means outside diameter) |
Working temperature (°C) | -40°C - 95°C |
Oxygen-permeability | 0 % (Nil) |
Burst Pressure/ Working | 60.42 bar/ 1200 Kpa |
Corrosion Resistance | non-corrosive |
Burning Resistance | 123°C |
Advantage:
long service life, indoor is 50 years, outdoor is 20 years
*Anti-ultraviolet*Green environment*Flexible,durable*Corrosion resistance* Excellent mechanical resistance* Unique chemical resistance* Very low friction coefficient(C=155 in Hazen-Williams Formula)* Excellent abrasion resistance* Very good resistance to heat* Excellent longevity* No longitudinal crack formation or other stress cracks* Low creep* No stone sediments due to pipe smoothness
Scope of Applications :
Conveying of aggressive fluids (acids, solvents, etc.)Slurry pipe lines.Conveying of abrasive materials.Process lines.Sea outfall lines.Industrial wastes.Pneumatic conveying.Hot and cold water supply lines (district heating). Pumping of corrosive and salt water.
